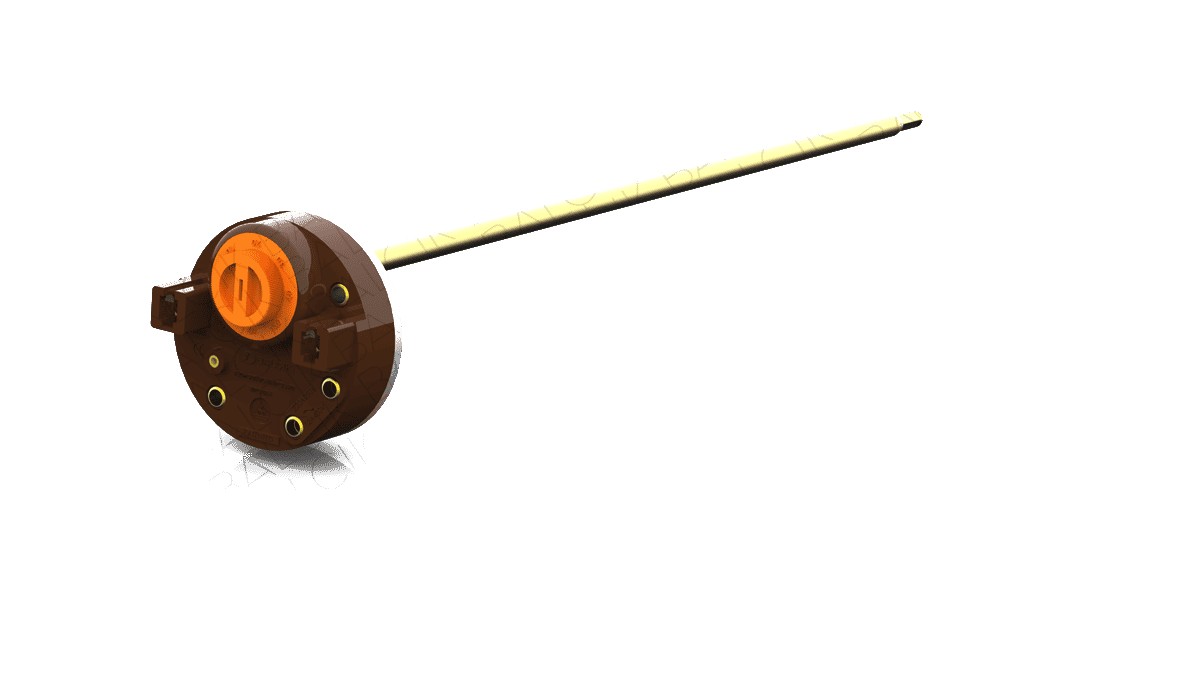

TR-1 · single-pole regulating thermostat
The stem's thermal expansion opens a snap-action switch and holds the water at the set temperature.
- Connection for a signal lamp
BALÇIK TORMEC stem-type thermostats
Control and safety in one head, plugged onto the element.
A rigid sensing stem in the pocket tube acts on a snap-action switch: direct switching without electronics, tolerant of the humidity and temperature inside a water-heater terminal cover.
BALÇIK TORMEC acquired the Italian brand Tormec in 2006; today stem thermostats are designed and manufactured by BALÇIK TORMEC for storage water heaters, boilers and some industrial tanks. The current range covers the TR-1 regulating and DST double-safety stem thermostats, supplied separately or fitted to our water-heater elements.
TR-1 · DST
Applications · where they work
Storage water heaters, boilers and tanks.
The stem senses the water through a pocket next to the element and switches the heater directly.
Key specifications
Typical values for water-heater duty.
From our specifications master. Settings, stem length and terminals are configured per project.
| Parameter | Typical series value |
|---|---|
| Stem diameter and length | Ø 6 mm stem; stem lengths 180 – 450 mm typical (e.g. 180, 220, 275, 350, 450 mm) |
| Materials | Stem: brass, copper or stainless steel; housing: thermoset or thermoplastic insulating body; contacts: silver alloy |
| Regulating range | Adjustable 20 – 70 °C as standard (e.g. 30 – 75 °C on request; hot water typically set at 55 – 65 °C); maximum set point always below the safety cut-out; fixed setting on request |
| Safety cut-out | Fixed, 90 °C as standard (75 – 120 °C on request); manual reset (non-self-resetting) for storage water heaters, automatic reset only where the appliance standard allows it |
| Switching capacity | 16 A at 250 V AC |
| Voltage | 230 V AC |
| Terminal types | 6.3 mm flat tabs, screw terminals, M4 studs; earth connection via mounting bracket |
| Mounting | Bracket clamped to element flange, pocket tube Ø 8 – 10 mm; adjusting knob or screwdriver setting |
Values are typical; the final design is confirmed by BALÇIK TORMEC engineering. All product groups: Specifications by product group.
Versions
One platform, two versions.
How the temperature is controlled, how the safety limiter acts and who sets the temperature – every version plugs directly onto the heating element.
Control and safety

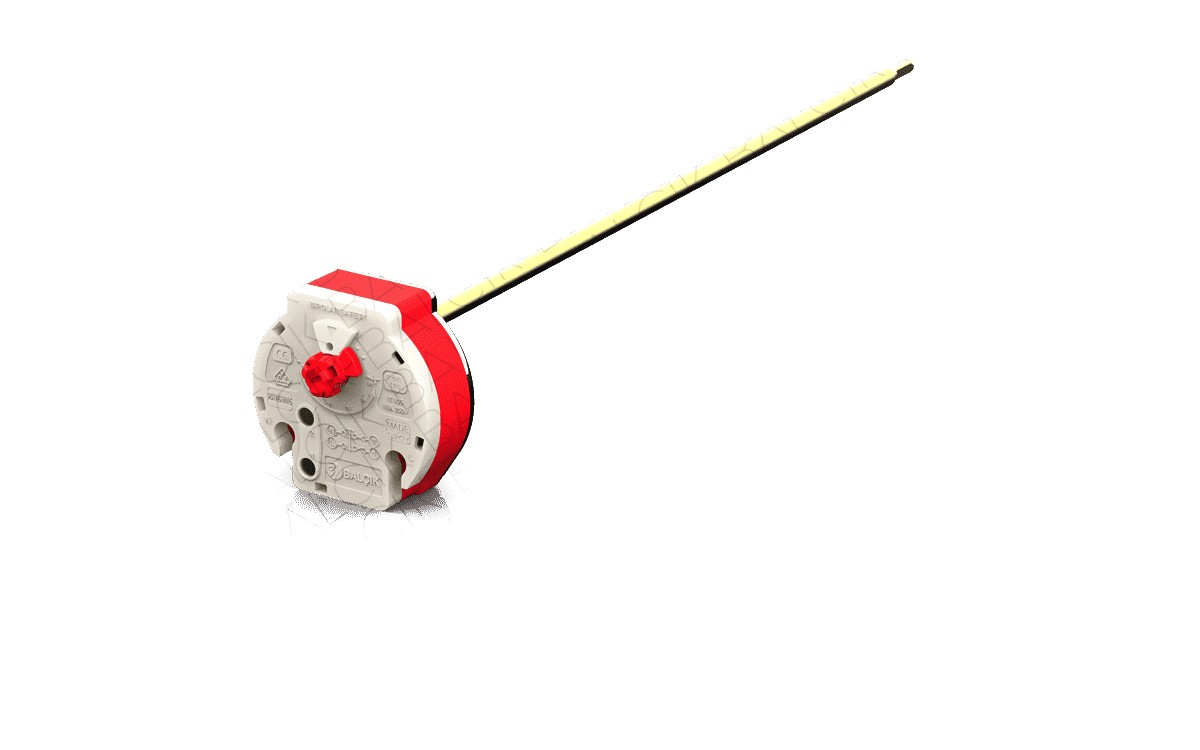

DST · double-safety stem thermostat
Bipolar stem-type regulating thermostat and a double-pole safety cut-out in one head: on over-temperature the cut-out opens both poles and stays open until reset by hand. 16 A, 250 V~, single phase · control range 20–70 °C (30–75 °C on request), differential 8 ± 4 K · safety cut-out 90 °C as standard (75–120 °C on request) · brass stem Ø6 mm, 180 – 450 mm · 6.3 mm fast-on terminals.
- Stem-actuated limiter, or an independent bimetal limiter as an option
Brochure of the hybrid (electronic) stem thermostat: PDF · online flip-book.
Technical drawing · TR-1 and DST
A stem that senses, a switch that snaps, a cut-out that stays open.
The stem sits in the pocket tube next to the element. Its expansion drives the snap-action switch of the regulating contact; a separate safety cut-out opens on over-temperature and needs a manual reset.
One supplier for element and control
Matched assemblies, fewer interfaces.
Specifying element and thermostat together removes a supplier interface and a wiring step from your line – and puts one engineering team behind the assembly.
- Plugs directly onto the element – less wiring and lower mounting cost than a separately mounted thermostat.
- Specified together through co-design: stem length, pocket position, settings and terminals.
- Calibrated in a computerised process and protected by a tamper-proof housing.
- Earth connection through the mounting bracket.
Design considerations
Four choices that decide how the water heater behaves.
Stem, contacts, cut-out and the control standard – fixed on the drawing together with the element.
Stem length and position
The stem senses the water around it. Its length – 180, 220, 275, 350 or 450 mm – and the pocket position decide which water layer the thermostat controls.
Contacts and current
Silver-alloy contacts rated 16 A at 250 V AC single-pole. Size the rating to the element current: a 3000 W element at 230 V draws about 13 A.
Safety cut-out
Fixed, 90 °C as standard (75 – 120 °C on request), always above the highest set point and independent of the setting knob. Manual reset for storage water heaters; automatic reset only where the appliance standard allows it.
Control standards
Designed to EN 60730-1 and EN 60730-2-9 (automatic electrical controls, temperature sensing controls); RoHS and REACH declarations available.
Validation: each thermostat is calibrated in a computerised process; element-and-thermostat assemblies are checked in our validation laboratory – functional check, dielectric strength, insulation resistance and leakage current. How we test – quality and laboratory
Liquid heating elementsFlange elements the thermostat plugs onto
CataloguesArchive editions, including the 2016 brochure
Energy efficiencyHow control accuracy affects losses
Co-designElement and thermostat specified together
CertificatesISO 9001 and declarations
Download centreCertificates and declarations
Video · on YouTube

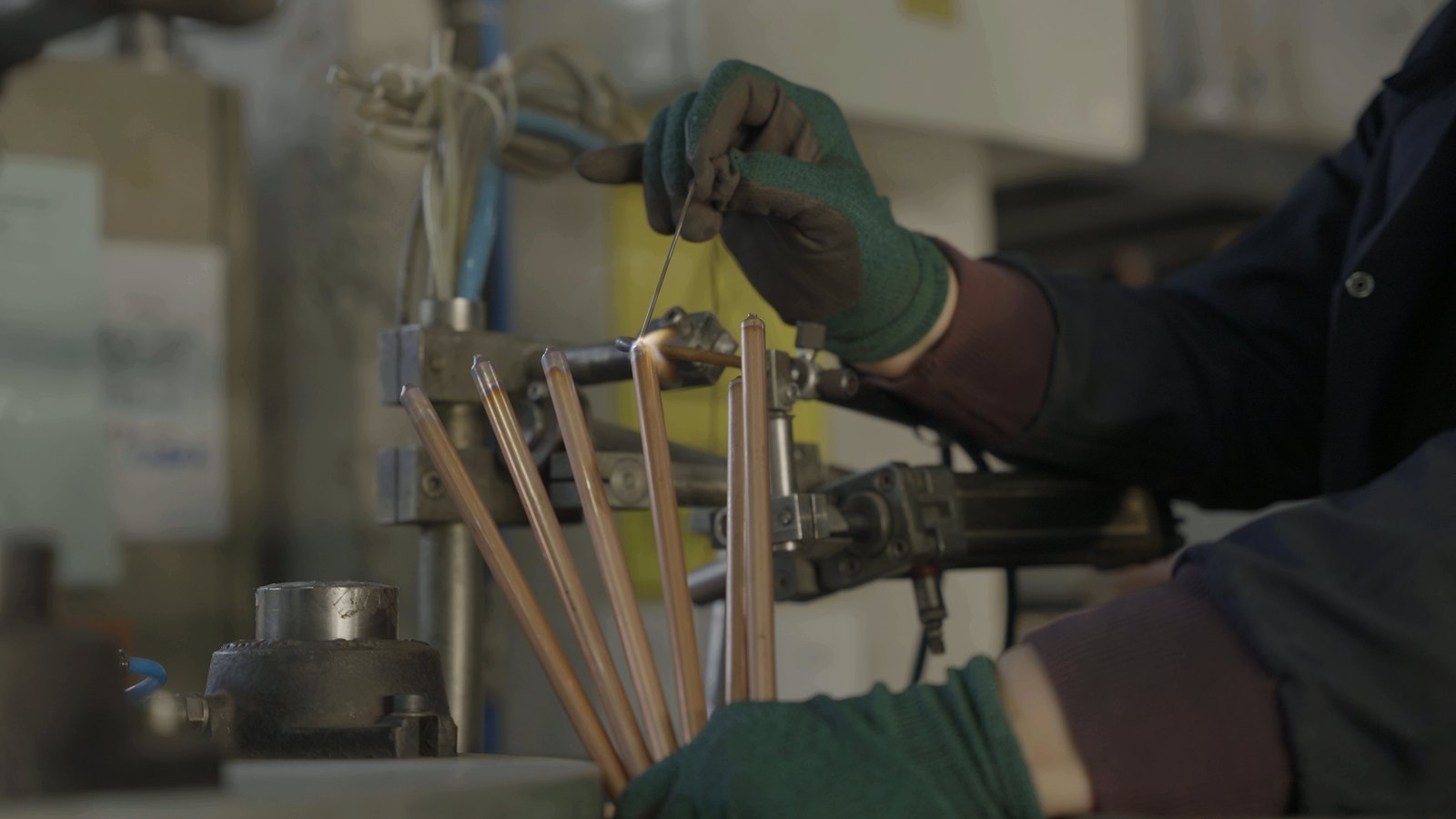

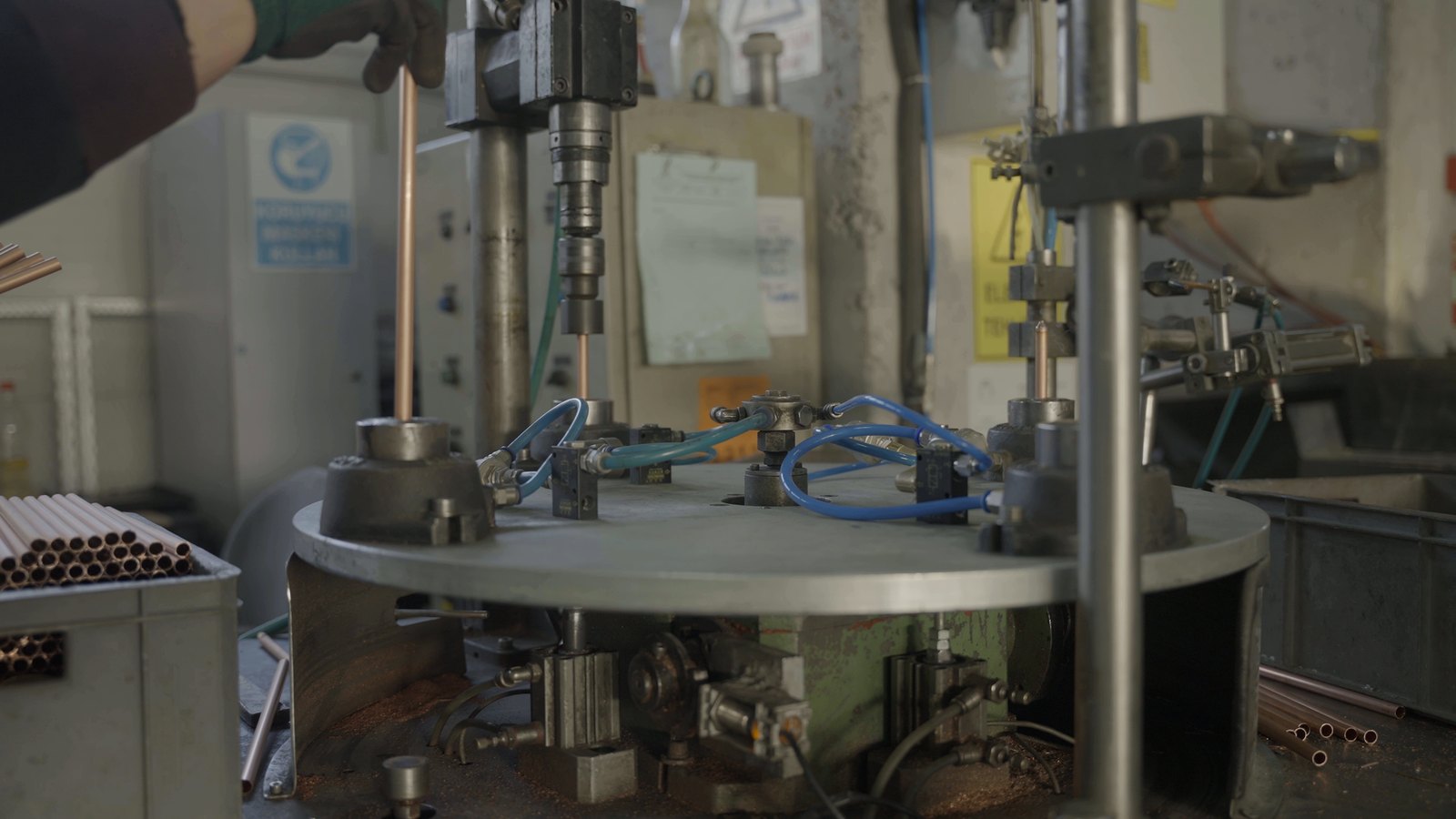

How a TR-1 stem thermostat is made.
A short film from our YouTube channel on the production of BALÇIK TORMEC stem-type thermostats in Ankara.
Online catalogue
TR-1 and DST in our online catalogue.
Data sheets of the single-pole regulating thermostat and the regulating and safety combination.
