RFD – Flange Type Straight

Category:

Description

Round-flange immersion heating element, 1000–2000 W.

picture1ss

Code Power (W) Length (mm)
RFD10-27 1000 275
RFD12-27 1200 275
RFD15-27 1500 275
RFD20-27 2000 275
RFD12-27-H 1200 275
RFD15-27-H 1500 275
Code Power (W) Length (mm)
RFDA12-26 1200 260
RFDA15-26 1500 260

picture1aa

  • Operating conditions: 6 bar / 95 °C
  • Voltage: 110 V – 127 V – 220 V – 230 V – 240 V

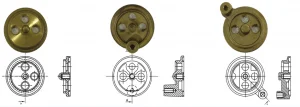

  • Flange Type: Ø 48 mm Round; material: Brass
  • Tube Diameter: 8.50 mm; thickness: 0.70 mm; material: Copper
  • Thermostat pocket: 275 mm long, Ø 8 mm × 0.5 mm wall
  • Thermostat pocket material: Copper
