RTC – 1.1/4′ Screw Type Bent

Category:

Description

Screw-plug immersion heating element, 1000–3000 W.


Code Power (W) Length L (mm) Length L1 (mm)
RTC10-1612 1000 165 120

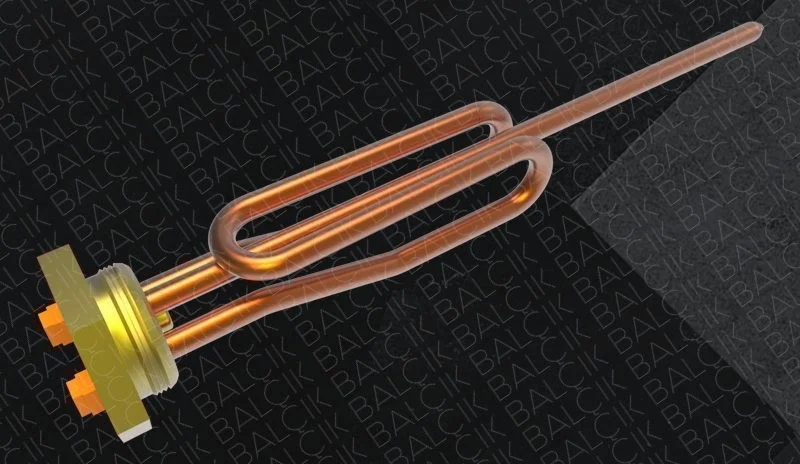

RTC12-1612 1200 165 120
RTC15-1612 1500 165 120
RTC20-1612 2000 165 120
RTC10-3010 1000 300 100
RTC15-3010 1500 300 100
RTC20-3010 2000 300 100
RTC25-3010 2500 300 100
RTC30-3014 3000 300 145


  • Operating conditions: 6 bar / 95 °C
  • Voltage options: 110 /127 / 220 / 230 / 240 V
  • Screw plug: G 1¼ (ISO 228-1); material: brass
  • Tube Diameter: 8.50 mm; thickness: 0.70 mm; material: Copper, stainless steel 304 / 316L, Incoloy 800 or Incoloy 840
  • Thermostat pocket: 275 mm long, Ø 8 mm × 0.5 mm wall
  • Thermostat pocket material: Copper or Stainless Steel
