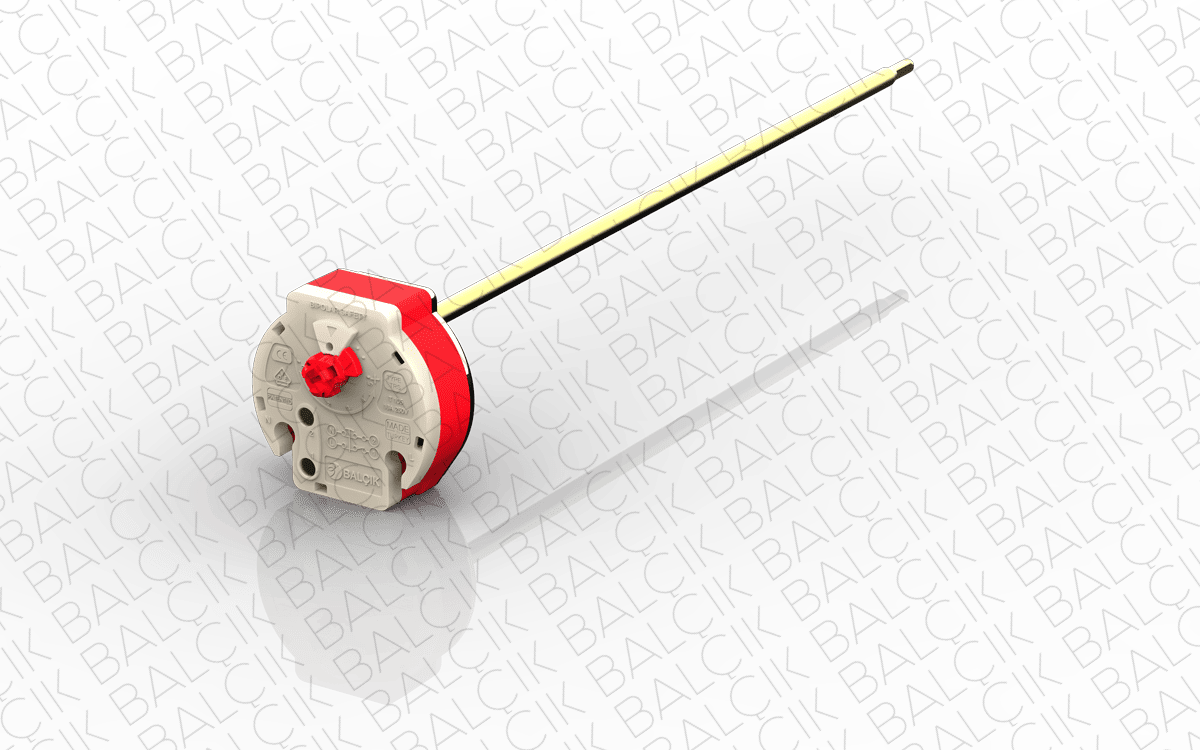

Stem-type thermostat TR-1

Description

Stem-type thermostat.

Code Function Standard maximum setting (°C) Stem tube length (mm) External regulation
TR-1/7027 Control only 70 ± 4 270 ± 5 Without External Regulation
TR-1/7027L Control only 70 ± 4 270 ± 5 With External Regulation
TR-1/8027 Control only 80 ± 4 270 ± 5 Without External Regulation
TR-1/8027L Control only 80 ± 4 270 ± 5 With External Regulation
  • Single-pole stem-type control thermostat
  • Single phase, up to 16 A 250 V~
  • Operating range: 20 – 90 °C; standard maximum setting 70 °C or 80 °C by version
  • Switching differential: 8 ± 4 K
  • Stem lengths: 180 mm, 220 mm, 275 mm, 350 mm, 450 mm
  • Stem Tube Material: Brass
  • Stem Tube Diameter: 6.00 mm × 0.40 mm
  • Electrical connection: 6.3 × 1.0 mm quick-connect (faston) tabs
